ROVJETs

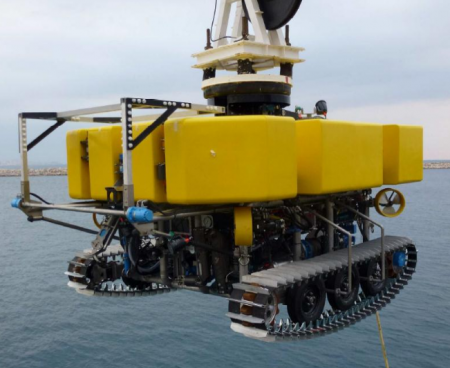

ROVJET 207

ROVJET207

  • Length (O.A.) : 5.00 m
  • Width (O.A. with tracks) : 3.30 m
  • Height (O.A.) : 2.50 m
  • Weight in air : 8.3 tons
  • Trench depth : up to 1.00 m
  • Trench width : up to 340 mm
  • Total power : 150 kW (200 HP)
  • Max. rating depth : 2,500 m
  • Speed on tracks : 2,500 m/h

Free swimming / Tracked ROV 2,500m water depth.





Download PDF

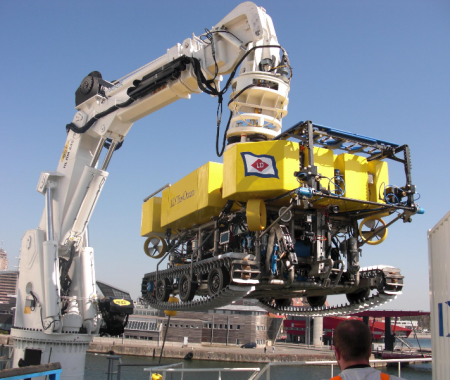

ROVJET 400

rovjet-4011

  • Length (O.A.) : 5.80 m
  • Width (O.A. with tracks) : 3.40 m
  • Height (O.A.) : 2.50 m
  • Weight in air : 10 tons
  • Trench depth : up to 2.00 m
  • Trench width : up to 340 mm
  • Total power : 300 kW (400 HP)
  • Max. rating depth : 2,500 m
  • Speed on tracks : 2.500 m/h

Multipurpose ROV – PLIB and maintenance works.
Six machines have been built in this serie (between 2007 and 2013) : ROVJET 401, 402, 403, 404, 408 and 409.



Download PDF

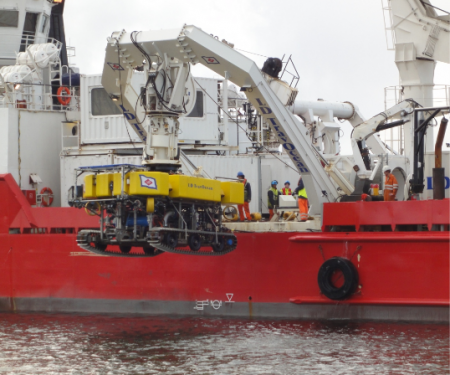

ROVJET 605

rovjet-6051

  • Length (O.A.) : 6.50 m
  • Width (O.A. with tracks) : 3.40 m (4.3m for VSW)
  • Height (O.A.) : 2.80 m
  • Weight in air : 13 tons (9.4 tons for VSW)
  • Trench depth : up to 2.20 m
  • Trench width : up to 480 mm
  • Total power : up to 440 kW (600 HP)
  • Max. rating depth : 1,000 m
  • Min. rating depth (VSW) : 1.6 m
  • Speed on tracks : 2,500 m/h (3,400 m/h VSW)

The main specifications listed here after are for the “standard” configuration of our ROVJET605.
A “Very Shallow Water” (VSW) configuration exists for this R.O.V. too.



PDF ROVJET605PDF ROVJET605 -VSW

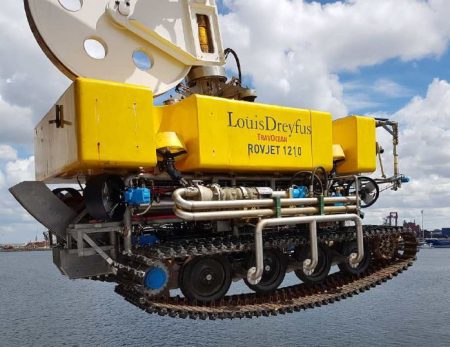

ROVJET 1200

  • Length (O.A.) : 6.20 m
  • Width (O.A. with tracks) : 4.30 m
  • Height (O.A.) : 2.90 m
  • Weight in air : 15 tons
  • Trench depth : up to 3 m
  • Trench width (standard) : 480 mm
  • Total power : 880 kW (1200 HP)
  • Max. rating depth : 500 m
  • Speed on tracks : 2,500 m/h

Multipurpose ROV – PLIB and maintenance works.
Our t
wo existing machines ROVJET 806 and ROVJET 810 have been upgraded and are now ROVJET 1206 and ROVJET 1210.



Download PDF

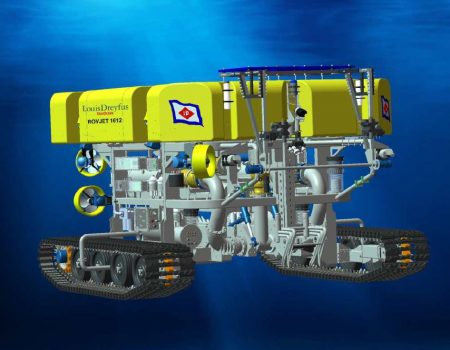

ROVJET 1612

  • Length (O.A.) : 6.40 m
  • Width (O.A. with tracks) : 5.30 m
  • Height (O.A.) : 3.50 m
  • Weight in air : 21.3 tons
  • Trench depth : up to 3 m
  • Trench width (standard) : 580 mm
  • Total power : 1179 kW (1600 HP)
  • Max. rating depth : 500 m
  • Speed on tracks : 2,500 m/h

Multipurpose ROV – PLIB and maintenance works.
The first machine of this serie, the ROVJET 1612, is under construction in La Ciotat (2017)



Download PDF

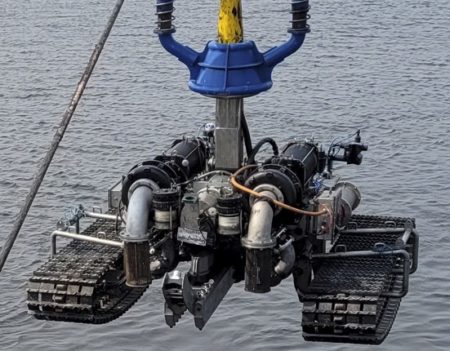

T.O. MOBILE

  • Length (O.A vehicle only) : 4.35 m
  • Width O.A : 3.86 m
  • Height O.A : 1.94 m
  • Weight in air : 3.5 tons
  • Trench depth : 2 m
  • Trench width : 340 mm
  • Total power : 317 kW (425 HP)
  • Speed on tracks : 700 m/h



Download PDF
