Tailor-made beaming solutions
for all types of soil
LD TravOcean designs and develops a wide range of beaming equipment for working in all types of soil.
Operating its machines as part of its operations gives LD TravOcean the advantage of direct feedback from their use at sea, and thus enables it to improve machines and tools. LOUIS DREYFUS TRAVOCEAN also designs all the equipment and systems needed to operate the submarines on mission: power, cable machines, tensioners, launching systems, piloting, etc).
-
ROV-C 100
- Length (O.A.) : 2.19 m
- Width (O.A.) : 1.17 m
- Height (O.A.) : 1.46 m
- Weight in air : 1,540 kg
- Payload : 150 kg
- Total power : 100 HP
- Max. rating depth : 1,000 m
The ROV-C work ROVs deliver enhanced flight control in a compact package. Reliable and easily maintained, they provide a 100-hp and state of the art intervention tooling. Four machines have been built in this serie (ROV-C 113, ROV-C 114, ROV-C 115 and ROV-C 116).
-
PHANTOM S4
- Length (O.A.) :1.530 m
- Width (O.A. with tracks) : 0.87 m
- Height (O.A.) : 0.61 m
- Weight in air : 0.118 tons
- Total power : 100-250 VAC – 50/60 Hz- 6 kVA
- Max. rating depth : 450 m
- Speed : 4,603 m/h
The PHANTOM S4 ROV system combines simplicity with the reliability of a well-proven product line.
-

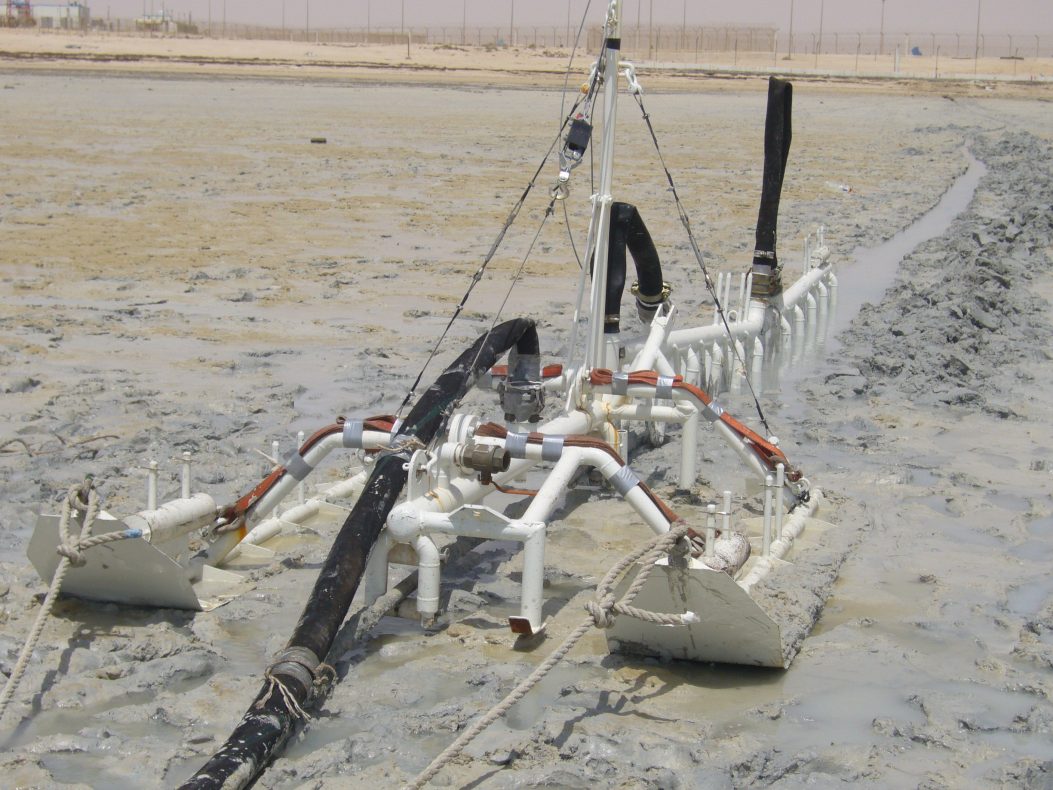

EBJ
- Length O.A. (vehicle only) : 2.46 m
- Length O.A (vehicle with jetting tails) : 11.40 m
- Width O.A. : 1.8 m
- Heigth O.A. : 0.50 m
- Weigth in air : 300 kg
- Trench depth : up to 2 m
- Trench width : up to 300 mm
Light jetting towed sledge for post burial operations in soft soils. It can be fiited with 2 or 3 jetting arms.
