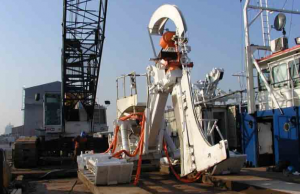

• ESV12

    • Length (O.A vehicle only) : 9.43 m
    • Width O.A : 4.47 m
    • Height O.A : 3.73 m
    • Weight in air : 13 tons
    • Trench depth : 2.20 m
    • Trench width : 86 mm
    • Max. tow force : 30 tons
    • Power : 150 HP
    • Max water depth : 60 m
    Vibro plough
    Download PDF

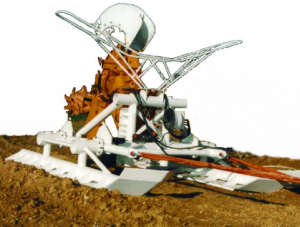

  • ESV07

    • Length (O.A vehicle only) : 7.50 m
    • Width O.A : 4.05 m
    • Height O.A : 4.00 m
    • Weight in air : 6.5 tons
    • Trench depth :1.10 m
    • Trench width : 85 mm
    • Max. tow force : 15 tons
    • Max capacity : 3 cables Ø 30 mm
    Light vibro plough in river beds
    Download PDF

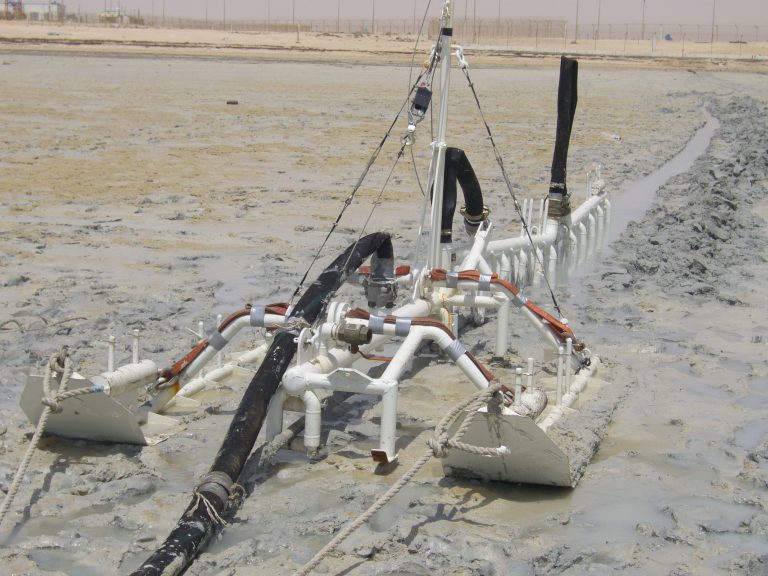

  • EBJ

    • Length O.A. (vehicle only) : 2.46 m
    • Length O.A (vehicle with jetting tails) : 11.40 m
    • Width O.A. : 1.8 m
    • Heigth O.A. : 0.50 m
    • Weigth in air : 300 kg
    • Trench depth : up to 2 m
    • Trench width : up to 300 mm
    Light jetting towed sledge for post burial operations in soft soils. It can be fiited with 2 or 3 jetting arms.
    FR-M-EBJ

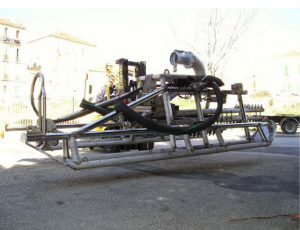

  • TJV07

    • Length (O.A vehicle only) : 4.50 m
    • Width O.A : 2.30 m
    • Height O.A : 1.80 m
    • Weight in air : 1.2 tons
    • Trench depth : up to 2.00 m
    • Trench width : up to 550 mm
    • Max. tow force : 2 tons
    Download PDF

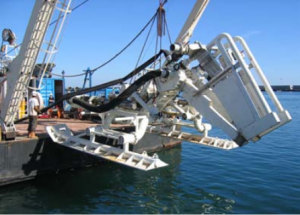

  • TJV06

    • Length (O.A vehicle only) : 8.00 m
    • Width O.A : 5.60 m
    • Height O.A : 4.00 m
    • Weight in air : 11 tons
    • Weight in water : 9 tons
    • Trench depth : 2 m
    • Trench width: 950 mm
    • Max. tow force: 10 tons
    • Max. tow force : 305 HP
    • Surface power :300 HP
    • Max. water depth : 60 m
    Download PDF
